AV Master Technology to Introduce Its Cutting-Edge Innovations at AV-ICN Expo 2025




AV Master Technology, one of the reliable and top-notch solutions providers in the pro AV industry, is set to introduce multiple high-end AV solutions at AV-ICN Expo 2025.

The official launch at the show floor will include Super Server, Super Audio Isolator, Super EDID, Super Cue Dual and Super Quad, HDMI 2.0 to HDBaseT Splitter in 1x4 and 1x8 - 4K@60Hz, HDMI 2.0 to HDBaseT Matrix in 8x8 and 4x4 - 4K@60Hz, DP 1.2 to Fiber, Extenders at 21.6 Gbps, AES50 to Fiber Extender, HDMI 2.0 Surge Protector, 8K HDMI Matrix - 8K@60Hz ( 8x8 and 4x4 ), and 8K@60Hz HDMI 2.1 Splitter/DA/Distributor, along with other high-end showcases to amaze the PALM AV-ICN Expo visitors.

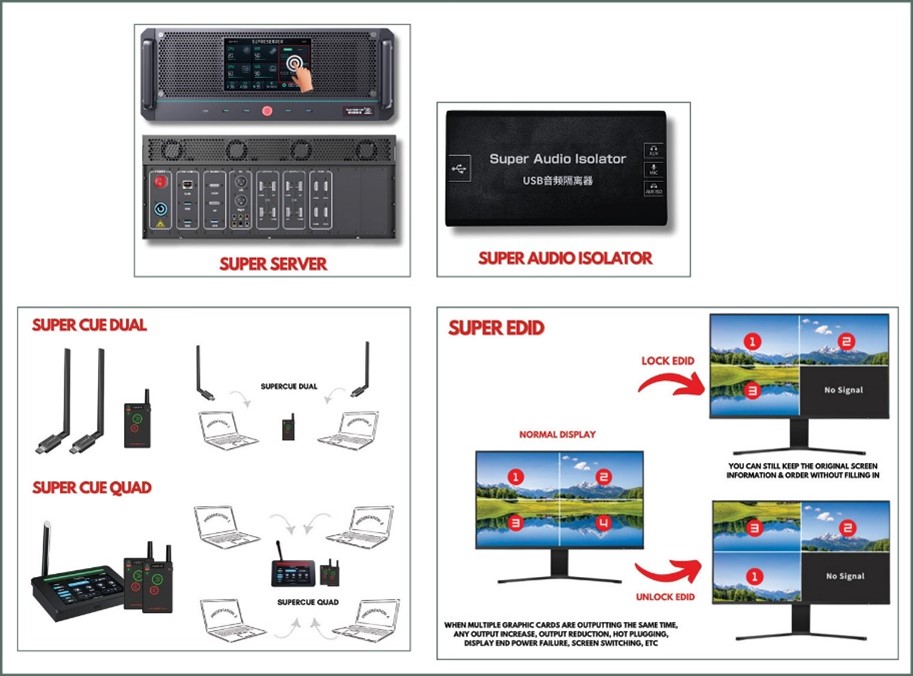

Super Server: This media server is highly realistic and captivating for users' events and projects. The device is built-in with super-audio isolation using the best isolation modules, can eliminate current sound caused by voltage, and protects the server motherboard from voltage difference damage. With this device, users can operate simply by clicking on the front panel to lock/unlock EDID and view the lock status in real time. Super Server is more flexible and optimised with any software like Novastar, Watchout, Resolume, D3, Christie Pandora Box, Vioso, Smode, Hirender, Kommander, and Arkaos.



Super Audio Isolator: Marking its presence as one of the effective products for the LED screen rental companies, sound rentals, AV companies, and system integrators, the device acts as surge protector and provides high-quality audio by in-directly mitigating the audio distortion.

Super EDID: Super EDID is an imperative and professional software, manufactured for AV companies, LED screen rental companies and systems integrators to lock and unlock the displays.

Super Cue Dual and Super Cue Quad: These are intelligent PPT clickers with extraordinary features. Super Cue Dual is for two laptops where PPT Slide Changer comes with two USB dongles with Antennas and one remote control that covers the distance of up to 250 meters. Super Cue Quad is for 4 laptops where PPT Slide Changer comes with a big receiver with a touch display to use the extraordinary features designed and comes with two remotes.

HDMI 2.0 to HDBaseT Splitter in 1x4 and 1x8 - 4K@60Hz: HDMI 1x4 HDBaseT Splitter can distribute 1 source signal to any 4 or 8 display devices. The device supports video resolution up to 4K2K@60Hz 4:4:4 and is designed with 1 HDMI loop output and 4 or 8 HDBaseT outputs. The HDMI signal transmission distance can be extended up to 120 meters at the resolution of 4K2K@60Hz, or 150 meters at 1080P@60Hz via a single CAT6/ 6a/7 cable. The product supports IR and RS-232 signal pass-through, audio extract function, and advanced EDID management.



HDMI 2.0 to HDBaseT Matrix in 8x8 and 4x4 - 4K@60Hz: The 18Gbps 4x4 or 8x8 HDBaseT (150M) Matrix can connect four HDMI sources to 4 or 8 displays. It features four HDMI outputs, and each HDMI output is mirrored to provide a CAT Cable output which runs simultaneously. HDBaseT output can extend video transmission distance up to 492ft/150m via a single Cat 5e/6/7 cable and the resolution is up to 4K2K@60Hz 4:4:4. Audio de-embedded to analog and coaxial audio is also supported in the device and each HDMI output supports 4K2K to 1080P down scaler independently.

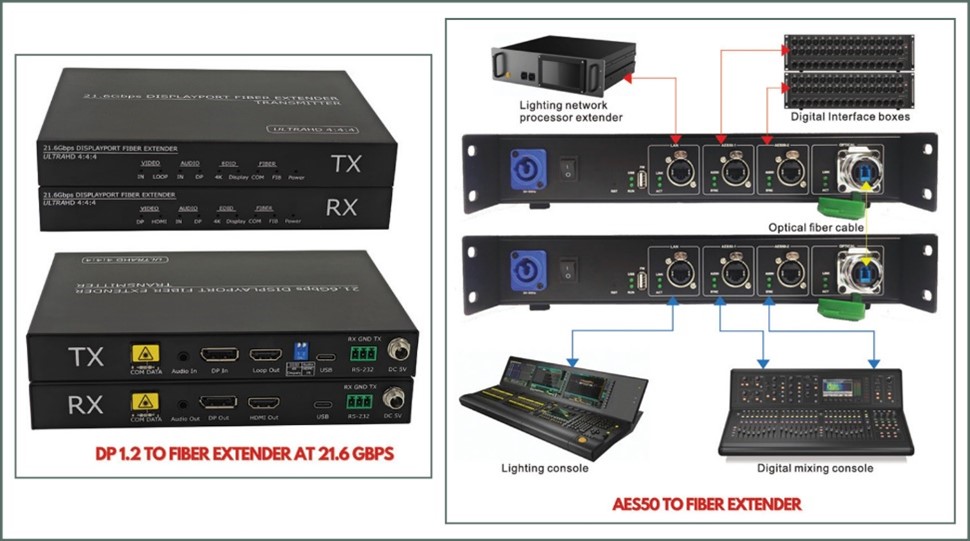

DP 1.2 to Fiber Extenders at 21.6 GBPS: DP4K@60Hz is one of the most significant and popular fiber solutions for LED screen, AV, and broadcast Industries. Best feature about this device is, it supports 3840x2160@60Hz with UHD 4:4:4 sampling rate, with EDID option. Users can also extract the audio separately. It's highly reliable and extra ordinary fibre extenders are set to assist rental companies and fixed projects.

AES50 to Fiber Extender: AES50 Fiber Extenders allow conversion of AES50 interfaces to single mode optical signals for long distance transmission. This device is suitable for the Midas and Behringer digital consoles and is powerfully designed to provide high quality performance and extension device. One Fiber Port can transmit two AES50 and one gigabit network, saving wiring costs for the users.

HDMI 2.0 ESD PROTECTORS: As one of the key devices for AV, broadcast, and LED Screen industries, this device protects users' HDMI port from the reverse power and short circuit. This 4K@60Hz HDMI Protector comes with ESD IC, which acts as a surge protection for HDMI Port. It can be used for laptops, switchers, video controllers, or any capture cards.

8K HDMI Matrix - 8K@60Hz (8x8 and 4x4): The matrix's 8x8 variant supports seamless switching, and a resolution of 3840 x 2160@60Hz with a sampling rate 4:4:4., HDCP 2.2, and EDID support. There are many variants of 4K@60Hz also available now. The matrix acts as one of the key products for the rental companies and fixed installation projects.

8K HDMI 2.1 SPLITTER 8K@60Hz: This device is applicable for AV companies, systems integrators, LED screen rental clients, and broadcasting studios. It is super stable with EDID feature. With 4K@120Hz / 8K@60Hz, it runs at 48GBPS and supports 4:4:4 - 12-bit content, certified by 8K association.
